CAR.LOS V1 FULL Compact cargo bike

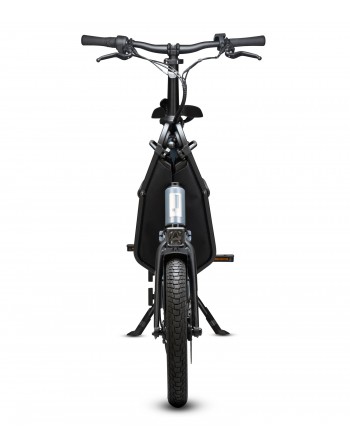

The CAR.LOS Model V is a foldable compact cargo bike that combines the load capacity of a cargo bike with the convenience of a folding bike. Thanks to its patented frame design, folding mechanism and cable steering, it is ideal for urban riders and multimodal commuters. When folded, it measures just 108 cm x 44 cm, making it easy to take with you in the car, train or public transport.

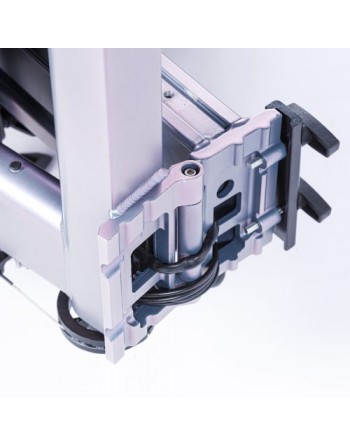

Despite its compact size, the CAR.LOS Model V offers an impressive load capacity. The optional "Vario-Basket" front basket can carry up to 65 kg, and the total permissible weight is 195 kg, which is exceptional in the class of compact utility bikes. A stable aluminum frame and a forged frame hinge ensure durability and reliability.

The 522 Wh battery is located under the cargo area, which ensures a low center of gravity and stable riding behavior. The direct cable steering allows for quick and precise changes of direction, making the riding behavior sporty and responsive. The CAR.LOS Model V is equipped with high-quality components from renowned brands such as Brose, Enviolo and Magura, which contribute to the reliability and performance of the bike.

The CAR.LOS Model V is available in two versions:

- CAR.LOS V1 Basic:
This entry-level version comes without the "Vario-Basket", ideal for those who have their own transport solutions or want to adapt their CAR.LOS step by step.

- CAR.LOS V1 Full:
This version comes with the removable and foldable "Vario-Basket", which can be folded to save space and set up stably for various transport needs.

With the CAR.LOS Model V, you can enjoy the versatility and load capacity of a cargo bike, combined with the convenience and flexibility of a folding bike, without compromising on performance or riding pleasure.

Here is an overview of the technical features of the CAR.LOS Model V:

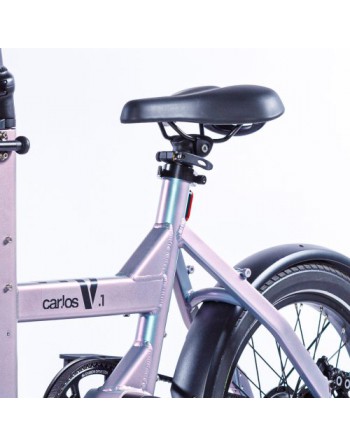

- Frame: 6061 Aluminium Folding Frontloader
- Suitable for: Persons from 150 cm to 195 cm
- Fork: Rigid fork with cable steering
- Drive system: BROSE Drive-T motor with 1.5" TFT colour display
- Battery: 522 Wh, 36 V / 14.5 Ah
- Gears: ENVIOLA N380 Cargo, continuously adjustable
- Brakes: MAGURA MT-5, hydraulic, 180 mm rotor
- Pedals: VP 831 with anti-slip coating
- Handles: OXO Ergo, screwed
- Stem: CAR.LOS Cargo Fold, height-adjustable
- Handlebars: CAR.LOS Straight Bar, 12°, 650 mm
- Saddle: Marwi Zurigo with handle

Equipment and Load Capacity
- Standard: CAR.LOS Double Stand
- Front carrier: Carlos Vario folding box
- Lighting:
- Front light: Sate Lite C13, Osram LED 80 Lux
- Rear light: Büchel Nano COB with brake light function
- Tires: Schwalbe Pick-Up 16x2.15 / 20x2.35

Dimensions and Weight
- Dimensions open: 2010 x 650 x 1150 mm
- Dimensions folded: 1080 x 440 x 830 mm
- Maximum load capacity:
- Front carrier: 65 kg
- Rider weight: 100 kg
- Total permitted weight: 195 kg (including vehicle, rider and load)
- Weight cargo bike: 34 kg

Important: The frame has a lifetime warranty when the product is registered on the website within 30 days of purchase.

With these specifications, the CAR.LOS Model V offers a combination of stability, load capacity and ease of use, ideal for urban mobility and transportation needs.
